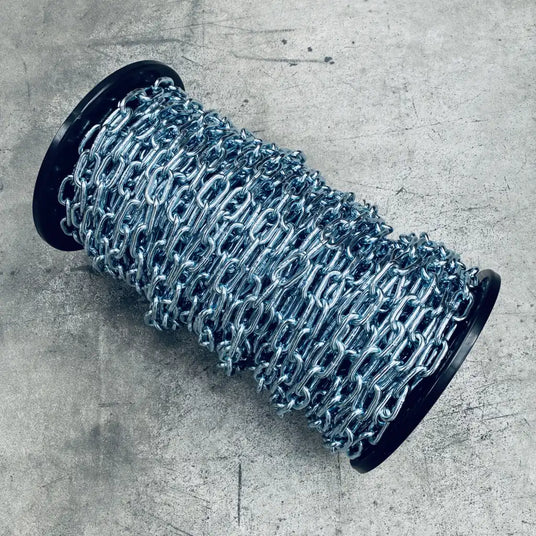

Galvanised Genoese chain on a reel

  • Electro-galvanised steel chain, Genovese type
  • Manufactured to tolerances in accordance with DIN 5685/A
  • Supplied on a plastic reel for easy unwinding
Login to see pricing
€9366
No./mm - Length

Long-link steel chain of the "Genoese" type, electro-galvanised for effective protection against rust in indoor and outdoor non-marine environments. Manufactured to tolerances in accordance with DIN 5685/A.

The product is supplied neatly wound onto plastic reels, a logistical solution that facilitates warehouse storage, allows the desired length to be cut without twisting and simplifies display at the sales counter.

Technical specifications

Item Code Gauge (No./mm) Mesh Dimensions (L x W x H) Weight (kg/m) Reel Length Working Load (Max)
CZB14 14 / 2.2 mm 2.2 x 15.6 x 10.2 mm 0.088 kg/m 75 m 25 kg
CZB15 15 / 2.4 mm 2.4 x 16.0 x 10.8 mm 0.100 kg/m 75 m 30 kg
CZB17 17 / 3.0 mm 3.0 x 19.0 x 13.0 mm 0.160 kg/m 75 m 55 kg
CZB18 18 / 3.5 mm 3.5 x 20.0 x 12.8 mm 0.210 kg/m 75 m 100 kg
CZB19 19 / 4.0 mm 4.0 x 21.5 x 15.3 mm 0.275 kg/m 75 m 110 kg
CZB21 21 / 5.0 mm 5.0 x 24.0 x 18.2 mm 0.440 kg/m 50 m 250 kg
CZB23 23 / 6.0 mm 6.0 x 28.0 x 22.2 mm 0.655 kg/m 30 m 310 kg
CZB25 25 / 7.0 mm 7.0 x 31.0 x 26.5 mm 0.950 kg/m 25 m 450 kg
CZB27 27 / 8.0 mm 8.0 x 35.0 x 29.8 mm 1.250 kg/m 15 m 600 kg
CZB30 30 / 10.0 mm 10.0 x 40.0 x 37.0 mm 1.950 kg/m 10 m 1000 kg

Packaging

Item Code Pcs. per Carton (Master)
All Product Codes 1 Reel (Single Carton)
