Double-head jaw bender
Double-head jaw bender - 6x8mm is backordered and will ship as soon as it is back in stock.

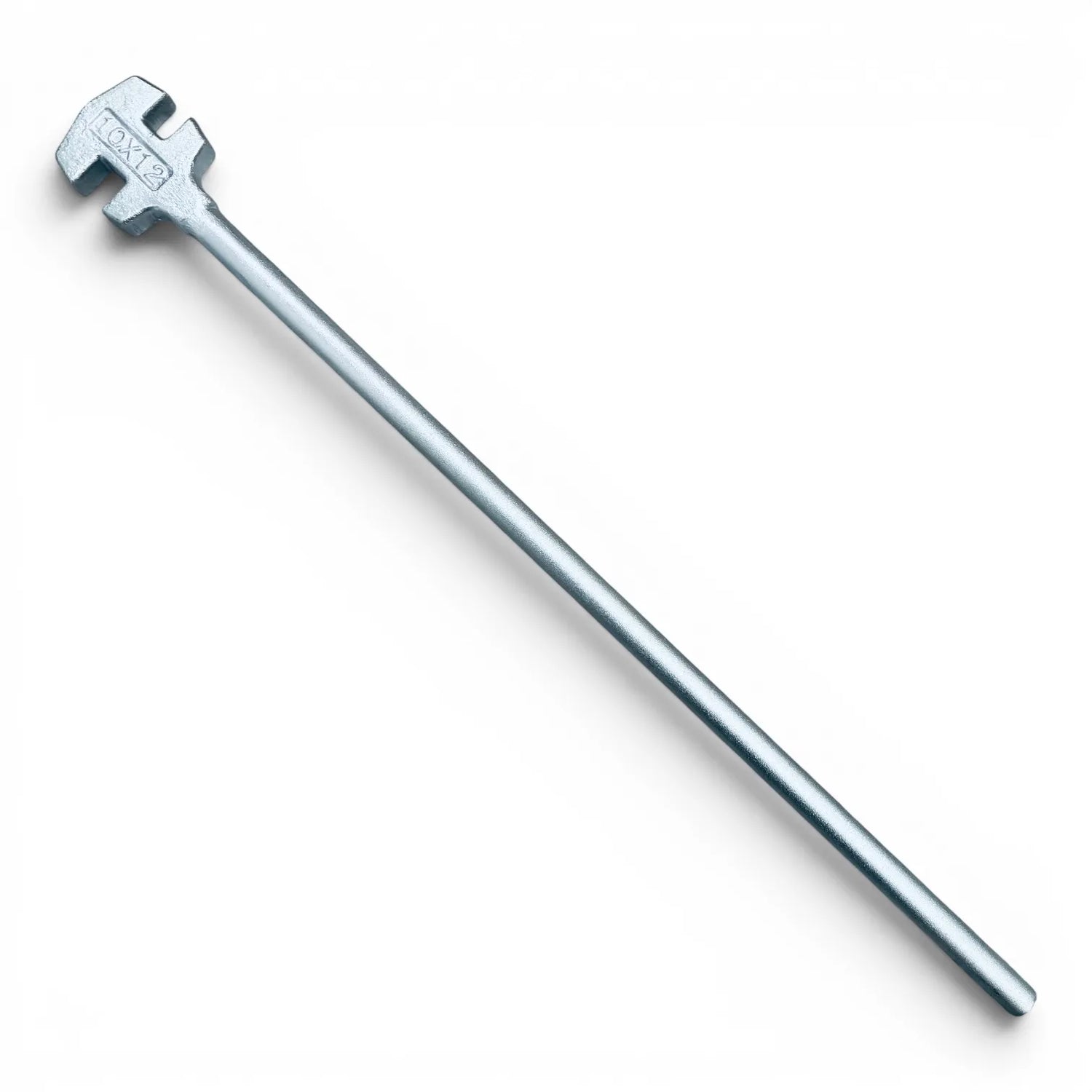

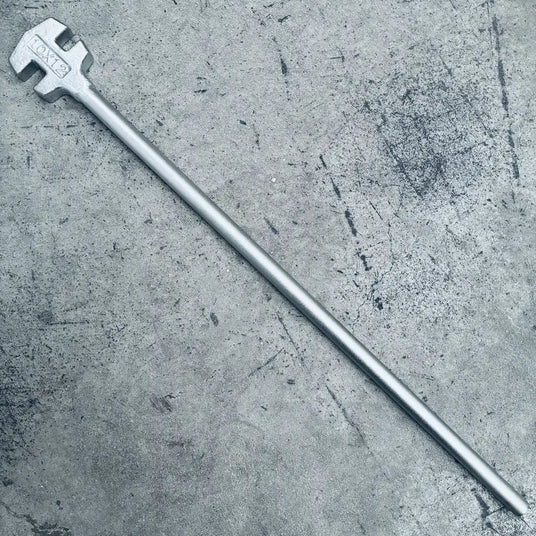

Manual double-head jaw bender, the ideal tool for maximising productivity and speed in the cold bending of round bars and reinforcing bars. The double-jaw configuration (e.g. 6x8 mm) allows the operator to switch instantly between the two diameters, reducing downtime on site.
Made from forged and hardened steel, it guarantees maximum resistance to bending and breakage even under the most intense stresses. The variable arm length (up to 1000 mm for the larger model) provides the mechanical leverage required to bend thicker bars. The galvanised finish protects the metal from oxidation and corrosion caused by mortar and moisture.
Double-head jaw bender
Technical specifications
Technical specifications
| Item Code | Curve (Size) | Length L (mm) | Bar Ø (mm) | Material |
|---|---|---|---|---|
| 36168I | 6x8 mm | 400 | 10 | Hardened Steel |
| 36112I | 10x12 mm | 500 | 14 | Hardened steel |
| 36116I | 14x16 mm | 600 | 18 | Hardened steel |
| 36120I | 18x20 mm | 1000 | 21 | Hardened Steel |
Packaging
Packaging
| Item No. | Dimensions (mm) | Pcs. per box | Pcs. per master carton |
|---|---|---|---|
| 36168I | 6x8 mm | 6 pcs | 48 pcs |
| 36112I | 10x12 mm | 6 pcs | 12 pcs |
| 36116I | 14x16 mm | 6 pcs | 12 pcs |
| 36120I | 18x20 mm | - | 6 pcs |
