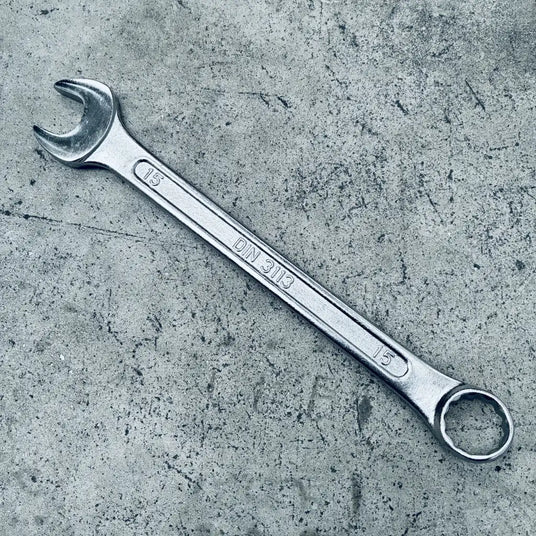

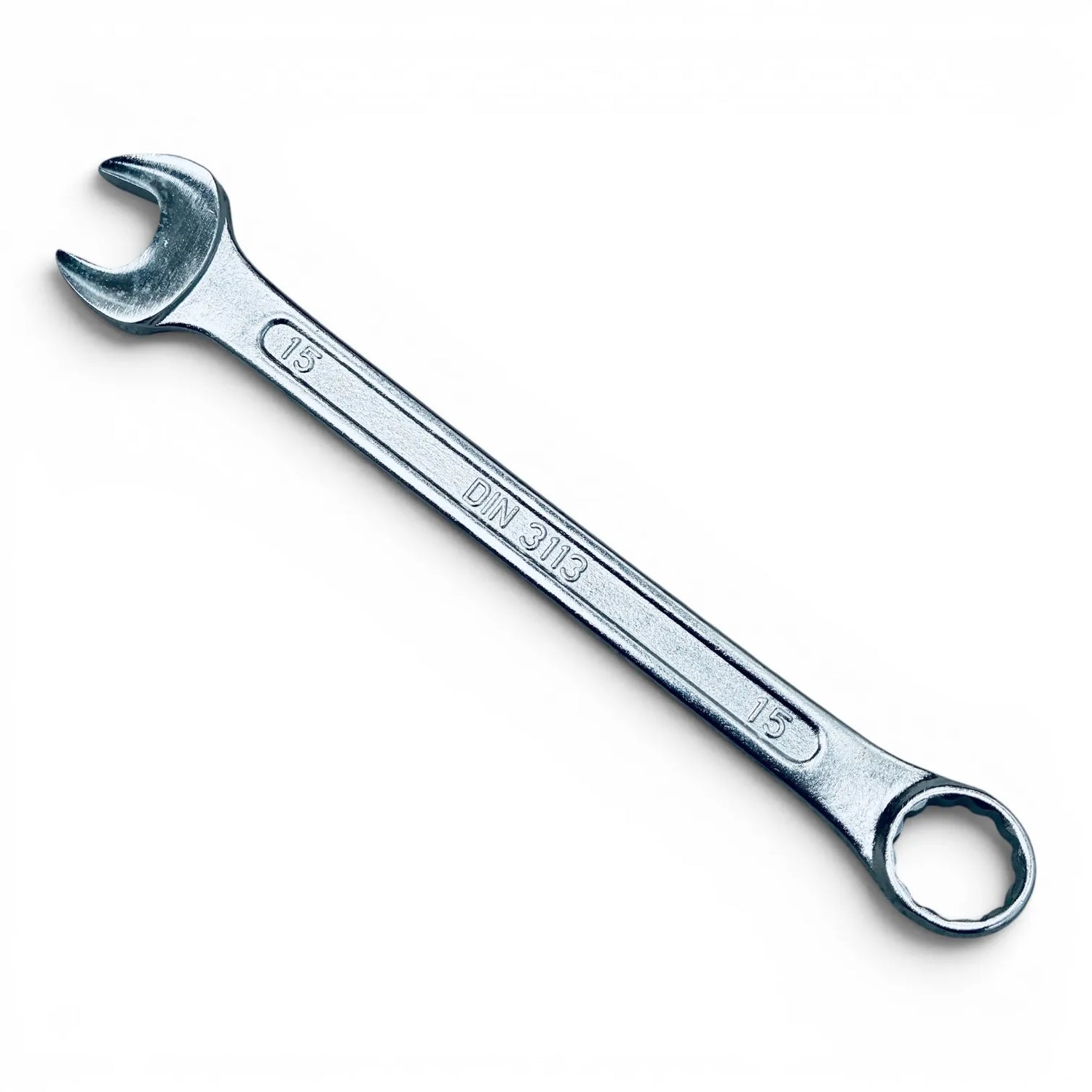

Chrome-vanadium combination spanner DIN 3113

  • Combination wrenches (Open-end + Ring)
  • To DIN 3113 standard
  • Made from chrome vanadium steel (Cr-V)
  • Polished heads
  • Size range from 6 mm to 32 mm
Login to see pricing
€080
Size

Combination spanner made from chrome vanadium (Cr-V) steel, designed to offer maximum versatility of use. This tool features two ends of the same size: on one side, a fixed open-ended jaw for quick side access to the nut; on the other, a polygonal (ring) head bent at a 15° angle to the axis, ideal for protecting the hands and applying higher torque without the risk of slipping.

Compliant with DIN 3113, the spanner is heat-treated for superior strength. The body has a satin finish for a secure grip, whilst the heads are polished, making cleaning easier.

Technical specifications

Item Code Dimensions (mm) Standard Material
238S6 6 mm DIN 3113 Hardened Cr-V
23807 7 mm DIN 3113 Hardened Cr-V
23808 8 mm DIN 3113 Cr-V Hardened
23809 9 mm DIN 3113 Cr-V Hardened
23810 10 mm DIN 3113 Hardened Cr-V
23811 11 mm DIN 3113 Hardened Cr-V
23812 12 mm DIN 3113 Cr-V Hardened
23813 13 mm DIN 3113 Hardened Cr-V
23814 14 mm DIN 3113 Hardened Cr-V
23815 15 mm DIN 3113 Hardened Cr-V
23816 16 mm DIN 3113 Hardened Cr-V
23817 17 mm DIN 3113 Cr-V Hardened
23818 18 mm DIN 3113 Hardened Cr-V
23819 19 mm DIN 3113 Hardened Cr-V
23820 20 mm DIN 3113 Hardened Cr-V
23821 21 mm DIN 3113 Hardened Cr-V
23822 22 mm DIN 3113 Cr-V Hardened
23823 23 mm DIN 3113 Hardened Cr-V
23824 24 mm DIN 3113 Hardened Cr-V
23825 25 mm DIN 3113 Hardened Cr-V
23826 26 mm DIN 3113 Hardened Cr-V
23827 27 mm DIN 3113 Cr-V Hardened
23828 28 mm DIN 3113 Cr-V Hardened
23829 29 mm DIN 3113 Cr-V Hardened
23830 30 mm DIN 3113 Hardened Cr-V
23832 32 mm DIN 3113 Hardened Cr-V

Packaging

Item No. Size Master Qty (carton) Inner Qty (box)
238S6 - 23810 6 - 10 mm 180 15
23811 - 23813 11 - 13 mm 250 25
23814 - 23816 14 - 16 mm 150 25
23817 - 23818 17 - 18 mm 160 20
23819 - 23826 19 - 26 mm 36 6
23827 - 23832 27 - 32 mm 24 4
