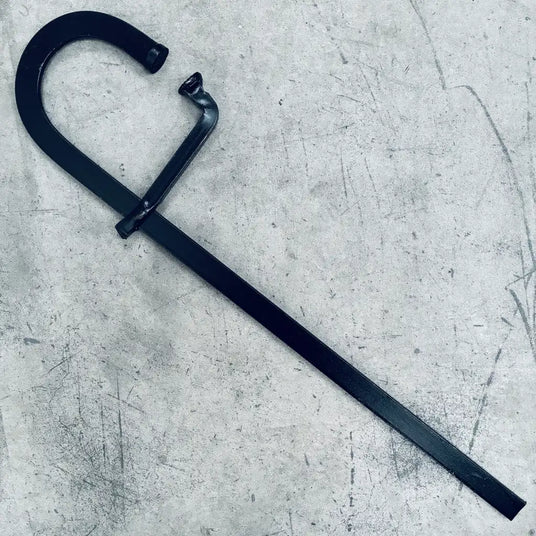

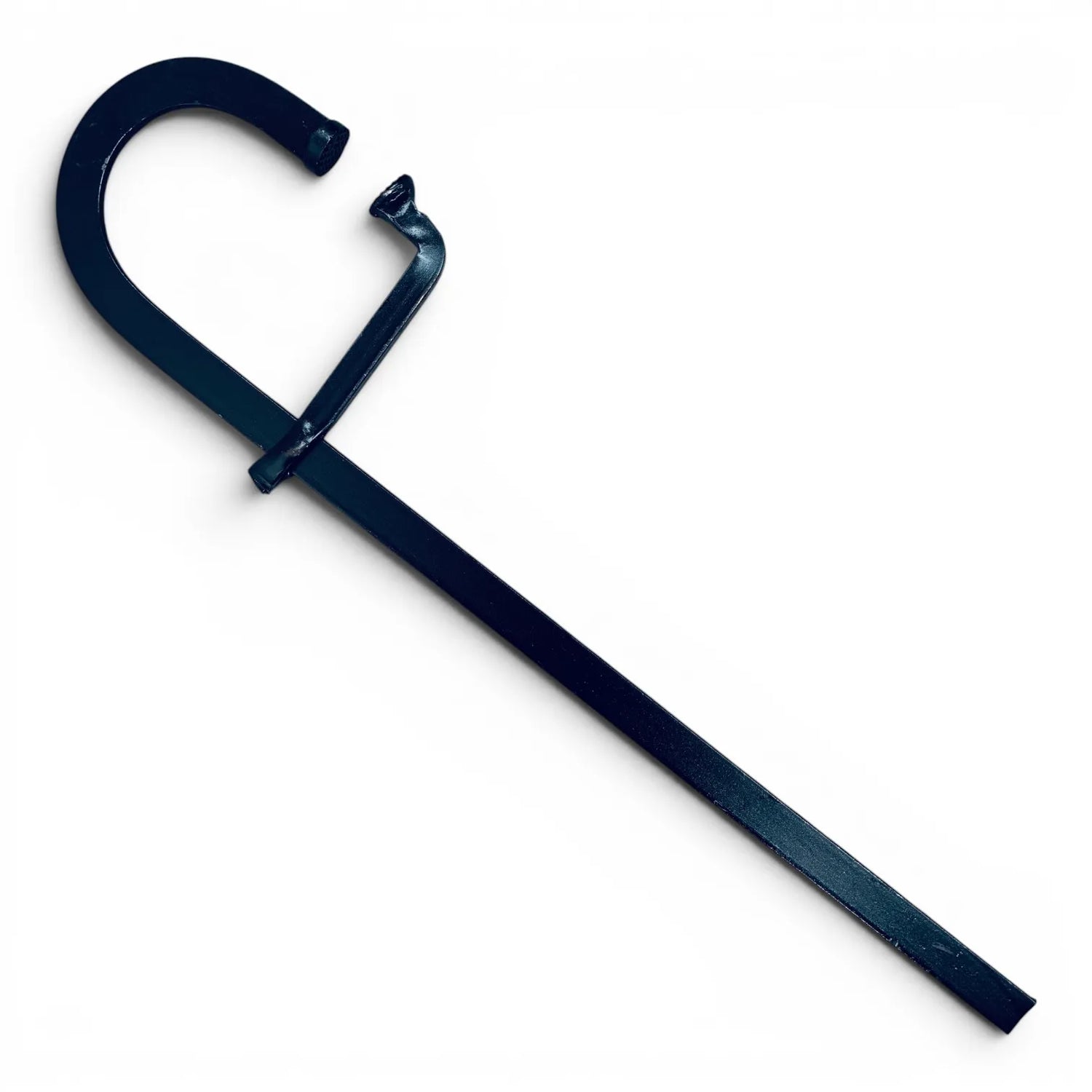

Curved hammer-type bricklayer’s clamp
Curved hammer-type bricklayer’s clamp - 400 x 600 mm is backordered and will ship as soon as it is back in stock.
A mason’s clamp characterised by a ‘curved’ design, engineered to meet specific reinforcement requirements on construction sites where space is limited or structural obstacles need to be circumvented. Made entirely from C45 steel, a material that gives the tool superior resistance to the stresses and wear typical of construction sites. It utilises an effective wedge-locking system: the movable jaw locks and unlocks instantly with a hammer blow, ensuring speed and a secure grip.
The pronounced curvature of the fixed jaw provides a working depth of 135 mm, allowing for easy operation on formwork and complex structures. The rod has a 30x7 mm cross-section, ensuring robustness and resistance to stress.
Curved hammer-type bricklayer’s clamp
Technical specifications
Technical specifications
| Item Code | Effective Opening (A) | Total Length (L) | Depth (B) | Cross-section (WxD) | Material |
|---|---|---|---|---|---|
| 400135 | 400 mm | 600 mm | 135 mm | 30x7 mm | C45 steel |
| 600135 | 600 mm | 800 mm | 135 mm | 30x7 mm | C45 steel |
| 800135 | 800 mm | 1000 mm | 135 mm | 30x7 mm | C45 steel |
| 1000135 | 1000 mm | 1200 mm | 135 mm | 30x7 mm | C45 steel |
Packaging
Packaging
| Item Code | Dimensions | Master Pcs (carton) |
|---|---|---|
| 400135 | 400 x 600 mm | 10 |
| 600135 | 600 x 800 mm | 10 |
| 800135 | 800 x 1000 mm | 10 |
| 1000135 | 1000 x 1200 mm | 10 |
