Galvanized chain

Accedi per i prezzi
SKU: CZB14
  • Galvanized chain for better resistance to corrosion and external agents
  • Each reel is supplied in a single neutral box
  • Used for any type of fastening in construction, agriculture, mechanics and industry
  • The meters per reel vary in relation to the diameter of the wire

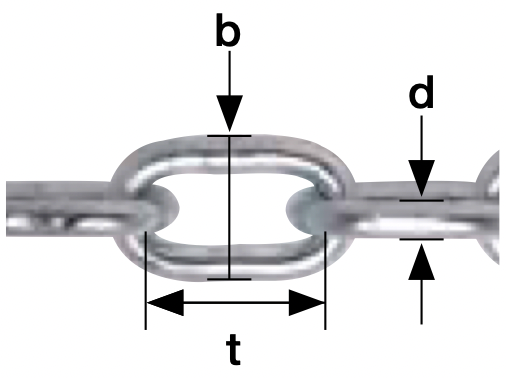

Below is a list of available sizes with relative dimensions and quantities in meters per reel:

N°/mm

Dimensioni d x t x b mm

Coil

Limit load

of work

14/2.2mm 2,2 x 15,6 x 10,2 75m 25kg
15/2.4mm 2,4 x 16,0 x 10,8 75m 30kg
17/3.0mm 3,0 x 19,0 x 13,0 75m 55kg
18/3.4mm 3,4 x 20,0 x 12,8 75m 100kg
19/3.9mm 4,0 x 21,5 x 15,3 75m 110kg
20/4.4mm 4,4 x 21,8 x 16,6 50m 200kg
21/4.9mm 5.0 x 24,0 x 18,2 50m 250kg
23/5.9mm 6,0 x 28,0 x 22,2 30m 310kg
25/7.0mm 7,0 x 31,0 x 26,5 25m 450kg
27/8.0mm 8,0 x 35,0 x 29,8 15m 600kg
30/10.0mm 10,0 x 40,0 x 37,0 10m 1000kg
